• Country
• Australia

• Manufacturer / Brand
• Eclipse Radio Pty. Ltd.; Melbourne

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118186

• • alternative name: Electronic Industries Ltd

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6J8G 6U7G 6B6G 6V6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 200-220; 220-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Bakelite case

• from Radiomuseum.org

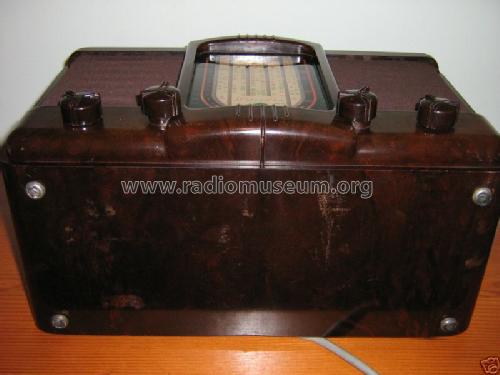

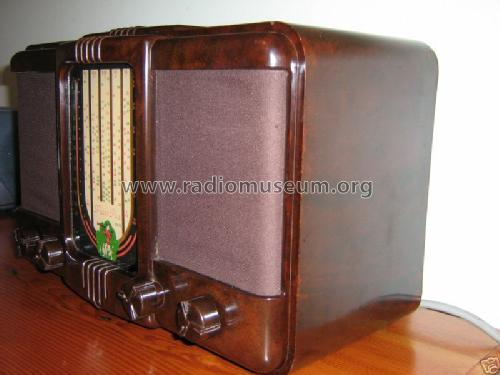

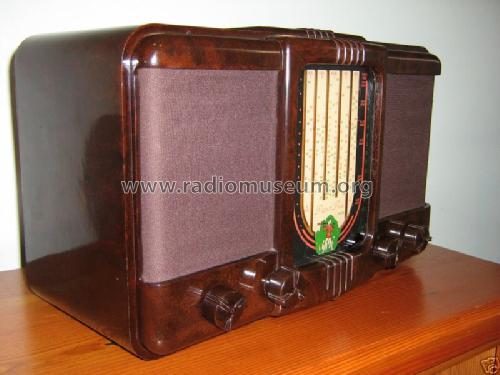

• Model: Peter Pan BKJ - Eclipse Radio Pty. Ltd.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 390 x 240 x 210 mm / 15.4 x 9.4 x 8.3 inch

• Notes

• See also Monarch version Model BKJ & Astor version Model KJ.

• Price in first year of sale
• 27.65 AUS £

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. V

• Literature/Schematics (1)
• - - Manufacturers Literature (Eclipse Radio Technical Bulletin, BKJ-1 & BKJ-2, 1/10/1946.)

• Literature/Schematics (2)
• Australian Official Radio Service Manual AORSM (Volume 5, 1947, Page 272.)

• Literature/Schematics (3)
• Australian Official Radio Service Manual AORSM (Volume 6, 1948, Page 369.)

• Author
• Model page created by Peter Hughes. See "Data change" for further contributors.
