• Country
• Germany

• Manufacturer / Brand
• CTR-Elektronik, Nürnberg

• Year
• 1970 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 241792

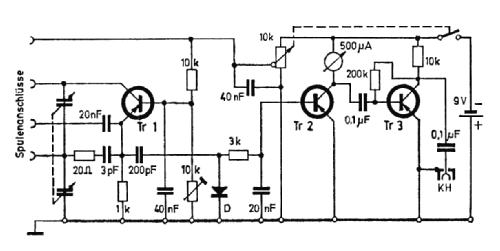

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Metal case

• from Radiomuseum.org

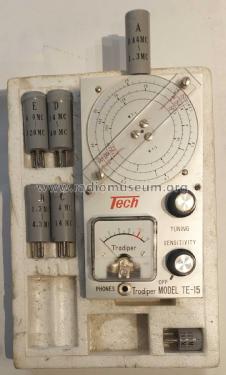

• Model: Tradiper TE-15 - CTR-Elektronik, Nürnberg

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 80 x 150 x 40 mm / 3.1 x 5.9 x 1.6 inch

• Notes

• Transistor Dipmeter für den Frequenzbereich 440 kHz bis 280 MHz mit 6 Steckspulen.

  Siehe auch Tech Modell Tradiper TE-15.

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Price in first year of sale
• 995.00 ATS

• Mentioned in
• Praktiker, Nr. 7/1970, Seite 25

• Author
• Model page created by Markus Müllner. See "Data change" for further contributors.
