• Country
• Great Britain (UK)

• Manufacturer / Brand
• Curry (Curry's) Ltd.; London

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183462

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6K8G 6K7G 6Q7G 6V6G Y63 5Z4G

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-220; 220-230; 240-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Power out
• 3 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

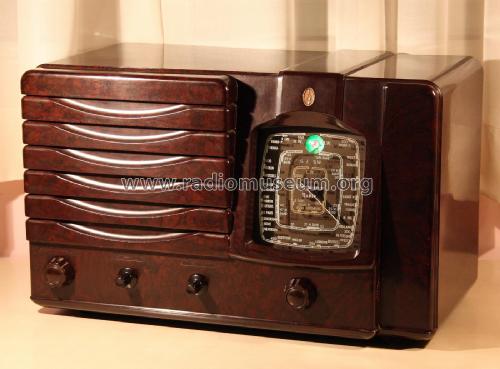

• Model: Westminster ZA-617 - Curry Curry's Ltd.; London

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 310 x 270 mm / 19.7 x 12.2 x 10.6 inch

• Notes
• Es gibt auch Geräte mit permanent dynamischem Lautsprecher.

• Literature/Schematics (1)
• Schaltplan im Gerät vorhanden. (Rückwand)

• Author
• Model page created by Erik Sipkema. See "Data change" for further contributors.
