• Country
• Japan

• Manufacturer / Brand
• Cybernet Electronics Corp.

• Year
• 1980 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 346556

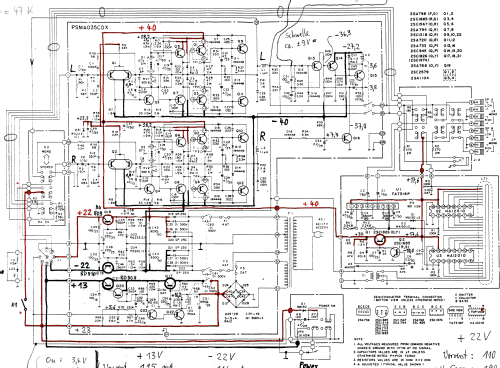

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 29

• Semiconductors
• TA7318 HA12010 HA12010 2SC2579 2SA1104 2SC2579 2SA1104

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 90 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Image Two Power Amplifier A2-RC - Cybernet Electronics Corp.

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 400 x 118 x 225 mm / 15.7 x 4.6 x 8.9 inch

• Notes

• Power supply for Pre-amp P2-RC, Tuner T2-RC and Cassette deck C2-RC; remote on/off.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
