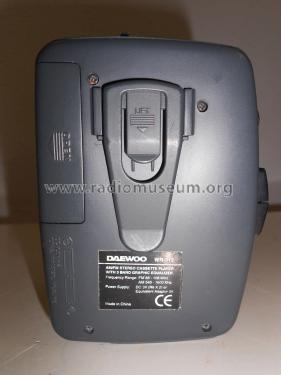

AM/FM Stereo Cassette Player with 3 Band Graphic Equalizer WR-312
Daewoo Electronics (Daytron); Seoul
- Country
- South Korea
- Manufacturer / Brand
- Daewoo Electronics (Daytron); Seoul
- Year
- 1990 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 303524
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Batteries / addl. power jack / 2 x AA 1.5 Volt
- Loudspeaker
- - For headphones or amp.
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: AM/FM Stereo Cassette Player with 3 Band Graphic Equalizer WR-312 - Daewoo Electronics Daytron;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 125 x 85 x 30 mm / 4.9 x 3.3 x 1.2 inch
- Notes
-
Volume control - 3-band graphic equalizer (100 Hz-1 Khz- 10 KHz) - headphone socket - play / stop / ff.ww buttons. - Tape / AM / FM switch - 3 volt DC external power supply - frequency range AM 540/1600 KHz - FM 88/108 MHz - transport bracket.
controllo volume - equalizzatore grafico a 3 bande (100 Hz-1 Khz- 10 KHz) - presa per cuffia - tasti play/stop/ff.ww. - commutatore Tape/AM/FM - presa per alimentazione esterna 3 volt DC - frequency range AM 540/1600 KHz - FM 88/108 MHz - staffa di trasporto.
Made in China.
- Net weight (2.2 lb = 1 kg)
- 0.240 kg / 0 lb 8.5 oz (0.529 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
