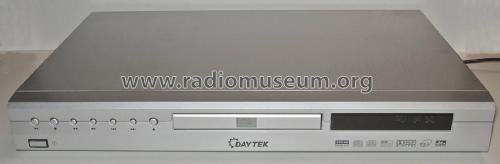

DAYTEK DVD Player DVD 707
Daewoo Electronics (Daytron); Seoul
- Country
- South Korea
- Manufacturer / Brand
- Daewoo Electronics (Daytron); Seoul
- Year
- 2002 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 340000
- Number of Tubes
- 1
- Valves / Tubes
- 20100-1C03
- Number of Transistors
- Semiconductors present.
- Semiconductors
- MT1369 MBM29LV800 HY57V641620 MT1336 BA5954 BA6849 CS4955 unknown_IC CS4334 NJM4558 AIC1084 PT6312 TL431 EL817
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- CD-DVD-VMD-Blu-ray for video; Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 47-63 Hz, 100-240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: DAYTEK DVD Player DVD 707 - Daewoo Electronics Daytron;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 57 x 290 mm / 16.9 x 2.2 x 11.4 inch
- Notes
-
Player für CD und DVD; MP3-tauglich.
Ausgänge: Video out (Cinch), SCART out, Audio Digital (Cinch), Audio out Analog R+L (2×Cinch).
Ländercode = 2.Made in China.
Halbleiterliste nicht vollständig.
- Net weight (2.2 lb = 1 kg)
- 2.990 kg / 6 lb 9.4 oz (6.586 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
