Remote Car Key RK-700S

Daewoo Electronics (Daytron); Seoul

Data
Forum
Pictures
Collections

  • Year
  • 2001 ?
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 357281

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Special principle (see notes)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Dry Batteries / CR1620: 1 x 3 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Remote Car Key RK-700S - Daewoo Electronics Daytron;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 89 x 34 x 11.2 mm / 3.5 x 1.3 x 0.4 inch
  • Notes

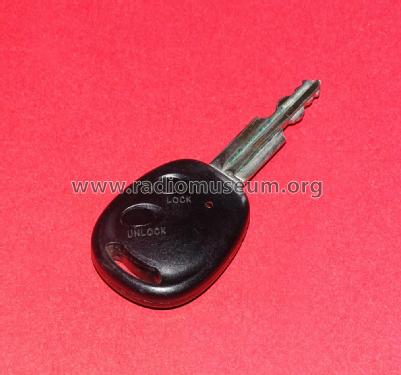

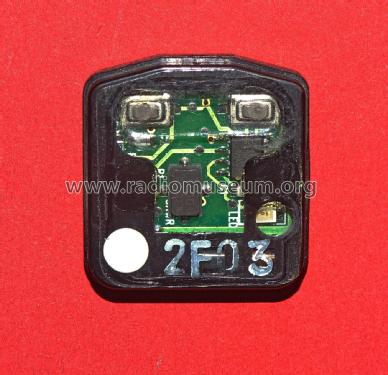

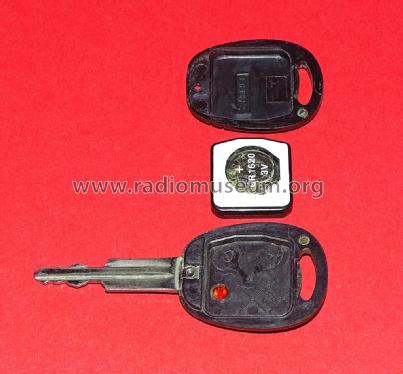

  • The Daewoo Model RK-700S Remote Car Key was used for several Daewoo/Chevrolet vehicle types from 2001 to 2011. It provides 2-button remote wireless entry and also has a non-flip key blade for the door locks and ignition switch of the car. A red LED indicates when the key is transmitting. The shell has no gasket but two transparent stickers shield the pcb from the ingress of moisture.

    OEM Part No. 96407093

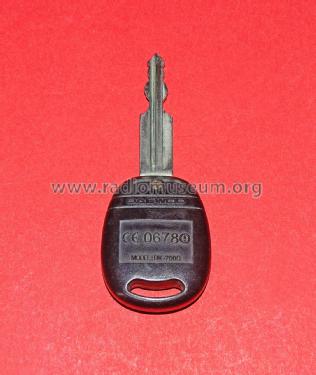

    CE 0678
    Frequency 433 MHz
    Battery CR1620 3 V
    Transponder Megamos ID48
    Keyblade Silca DWO4R or JMA DAE-3D
    Shell parts ETD75KF1 and ETE13KF2

  • Net weight (2.2 lb = 1 kg)
  • 0.018 kg / 0 lb 0.6 oz (0.04 lb)
  • Author
  • Model page created by Bruce Taylor. See "Data change" for further contributors.
