• Country
• South Korea

• Manufacturer / Brand
• Daewoo Electronics (Daytron); Seoul

• Year
• 1991

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 180810

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Line / Batteries (any type) / 22ß / 13,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Remote Control Color TV SW-1000 - Daewoo Electronics Daytron;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 285 x 260 x 310 mm / 11.2 x 10.2 x 12.2 inch

• Notes

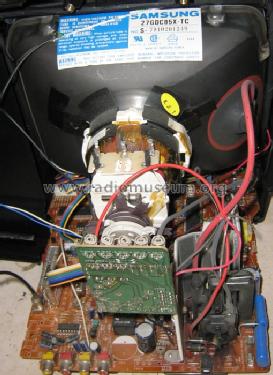

• Samsung 27GDC85X-TC picture tube. AC power supply PH-1430V (AC: 220 V 62 W, DC: 14 V 3 A).

• Net weight (2.2 lb = 1 kg)
• 6.1 kg / 13 lb 7 oz (13.436 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Jouko Laukkanen. See "Data change" for further contributors.
