Labpac Low Voltage Power Supply B-60-1T

Oltronix; Leek

Data
Forum
Pictures
Collections

  • Year
  • 1970
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 201185

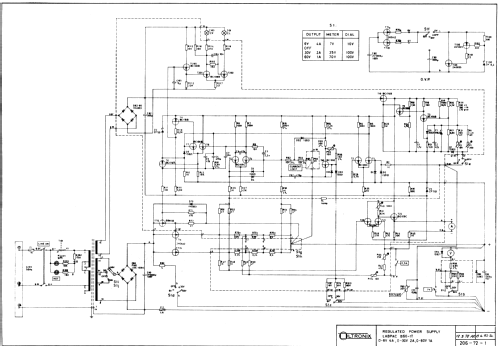

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 25
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 117; 220; 235 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Labpac Low Voltage Power Supply B-60-1T - Oltronix; Leek
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 132 x 167 x 242 mm / 5.2 x 6.6 x 9.5 inch
  • Notes

  • Stabilisiertes Netzgerät 0...60 V/1 A umschaltbar auf 0...30 V/2 A oder 0...6 V/4 A. Preis in Österreich ATS 7700.-

    Halbleiter teils mehrfach verwendet.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Museum Roggenhofer. See "Data change" for further contributors.
