- Country
- Great Britain (UK)
- Manufacturer / Brand
- Dansette Products Ltd.; London
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103367
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Dry Batteries / 2 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.6 W (unknown quality)
- from Radiomuseum.org

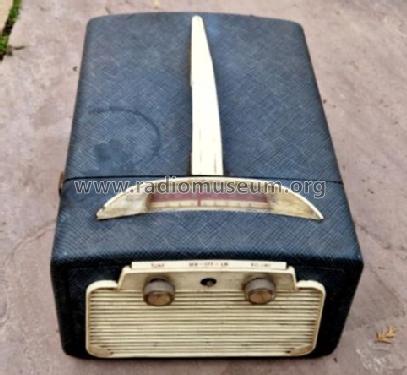

- Model: TRG45 - Dansette Products Ltd.; London
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Portable battery powered 45rpm record player with MW/LW radio.
- Net weight (2.2 lb = 1 kg)
- 7.5 lb (7 lb 8 oz) / 3.405 kg
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Wireless World (The), London (WW, 79) (Vol. 66, September 1960, p. 440)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
