• Country
• Germany

• Manufacturer / Brand
• Dantronik Funk (Autoton); Flensburg

• Year
• 1984

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 208452

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 10,8-15,6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Material
• Metal case

• from Radiomuseum.org

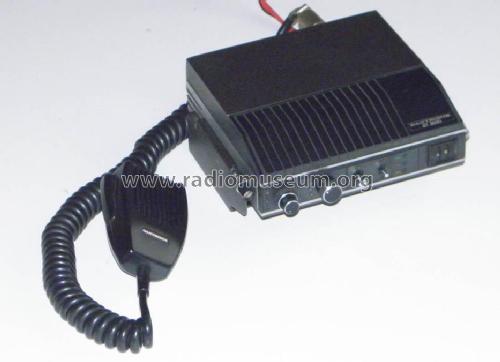

• Model: Sprechfunkgerät DT 3000 - Dantronik Funk Autoton;

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 150 x 50 x 160 mm / 5.9 x 2 x 6.3 inch

• Notes
• Fahrzeuggerät für Betriebsfunk, 3 Kanäle, Frequenzmodulation.
  Versionen für das 2 m-Band (Frequenzbereich 146 MHz bis 174 MHz, FTZ-Nr. E-548/84) und für das 0,7 m-Band (Frequenzbereich 455 MHz bis 470 MHz, FTZ-Nr. U-145/84).
  Sendeleistung 6 W, Selektivrufeinrichtung.

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• -- Original-techn. papers. (Sprechfunkgerät DT 3000 Bedienungsanleitung)

• Author
• Model page created by Siegfried Droese. See "Data change" for further contributors.
