• Country
• Great Britain (UK)

• Manufacturer / Brand
• Datong Electronics, Ltd.; Leeds

• Year
• 1980

• Category
• Amateur Equipment (Other, but not Key)

• Radiomuseum.org ID
• 194796

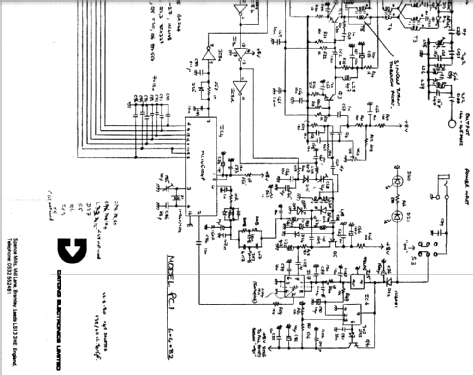

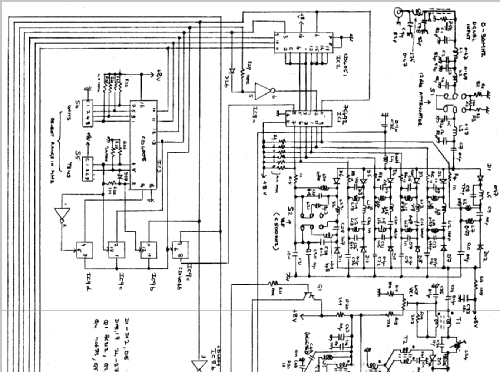

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• RF Converter/Adapter (not voltage converter)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit. / DC 10–13 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: General Coverage Converter PC1 - Datong Electronics, Ltd.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 184 x 44 x 153 mm / 7.2 x 1.7 x 6 inch

• Notes
• ICs: 9
  Datong General Coverage Converter PC1.
  Converts 30 kHz to 30 MHz in 30 synthesised bands of 1 MHz to 144–145 MHz; Input and Output Impedance: 50 Ω.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
