• Country
• Italy

• Manufacturer / Brand
• DBR (D.B.R.); Vimodrone (MI)

• Year
• 1972 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 327514

• Number of Transistors
• 8

• Semiconductors
• BF233 BF233 BF233 BC208 BC205 SFT353 SFT377 SFT357

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / AA; 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

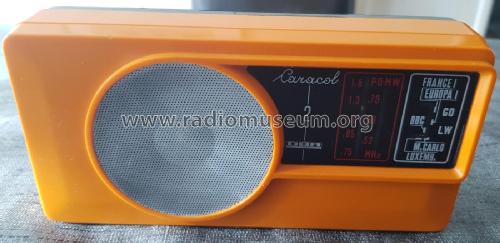

• Model: Caracol 2 - DBR D.B.R.; Vimodrone MI

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 155 x 80 x 35 mm / 6.1 x 3.1 x 1.4 inch

• Author
• Model page created by Didier Tholomier. See "Data change" for further contributors.
