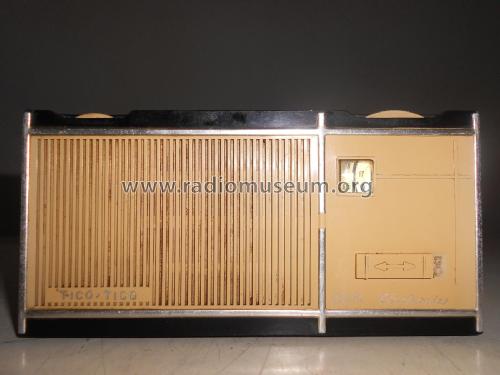

Tico-Tico GO-PO Export
DBR (D.B.R.); Vimodrone (MI)
- Country
- Italy
- Manufacturer / Brand
- DBR (D.B.R.); Vimodrone (MI)
- Year
- 1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 306872
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Tico-Tico GO-PO [Export] - DBR D.B.R.; Vimodrone MI
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 150 x 80 x 35 mm / 5.9 x 3.1 x 1.4 inch
- Notes
-
controllo volume - antenna interna in ferrite - presa per auricolare - commutatore PO/GO.
Il transistor PTO anche in questo apparecchio è collegato come diodo.
- Net weight (2.2 lb = 1 kg)
- 0.370 kg / 0 lb 13 oz (0.815 lb)
- Mentioned in
- -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
