- Country
- United States of America (USA)
- Manufacturer / Brand
- De Luxe Mfg. Co., Chicago, IL
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 283390
De Luxe 405 radio game pamphlet page 1
De Luxe 405 radio game pamphlet page 2
De Luxe 405 radio game pamphlet page 3
De Luxe 405 radio game pamphlet page 5
De Luxe 405 radio game pamphlet page 4
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
- Power type and voltage
- Other, details in remarks or not known. / 6, 32, 110-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

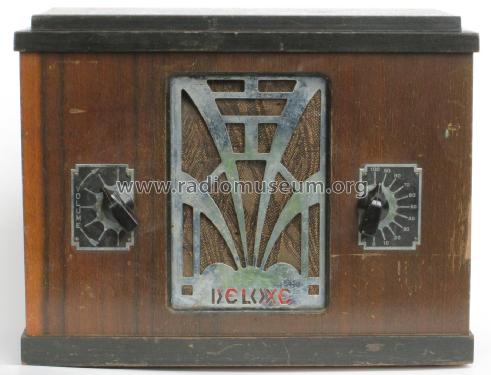

- Model: 405 - De Luxe Mfg. Co., Chicago, IL
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
The De Luxe model 405 has a socket power connection as well as a mains cord. This allows it to use 6-volt DC, 32-volt DC or 110-125 volt AC/DC. If a 6-volt or 32-volt power source is to be used the 43 tube must be replaced with a 41 tube. This set uses a 175 ohm resistance line cord for 110--125 volt power. This set does not use pilot lights.
- Price in first year of sale
- 32.50 USD
- Mentioned in
- -- Original prospect or advert (Sales advertising game card)
- Author
- Model page created by Robin Roeckers. See "Data change" for further contributors.
