- Country
- Great Britain (UK)
- Manufacturer / Brand
- Decca (Brand), Samuel (Barnett) & Sons, Ltd. & Decca Record Co., Ltd.; London
- Year
- 1967 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 180761
-
- alternative name: Decca Gramophone || Decca Radio
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: MRG525 - Decca Brand, Samuel Barnett &
- Shape
- Console with any shape - in general
- Notes
- Radiogram fitted with a Decca autochanger.
- Source of data

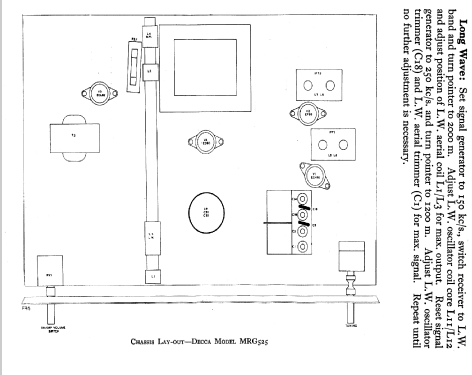

- -- Schematic
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS) (ERT Chart 1567)
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
