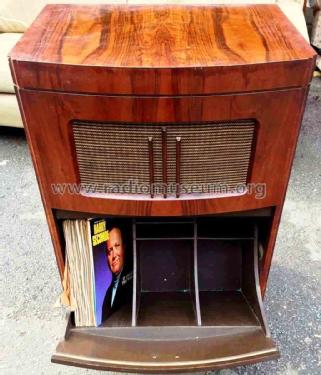

All-Wave Radiogramophone RG98

Decca (Brand), Samuel (Barnett) & Sons, Ltd. & Decca Record Co., Ltd.; London

Data
Forum
Pictures
Collections

  • Year
  • 1955 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 145249
    • alternative name: Decca Gramophone || Decca Radio

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 100-125; 200-250 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: All-Wave Radiogramophone RG98 - Decca Brand, Samuel Barnett &
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 25 x 36 x 19 inch / 635 x 914 x 483 mm
  • Notes

  • Radiogram fitted with Garrard RC111 3-speed record changer.

    Two speakers: 10" HFD (Z = 3 ohms) and 3.75 x 4.75" electrostatic tweeter.

  • Source of data
  • -- Schematic
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
