• Country
• United States of America (USA)

• Manufacturer / Brand
• Decca Records, Inc.; New York, NY

• Year
• 1960

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 139404

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 50EH5 50EH5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 3 Loudspeakers / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: The Norwood II DP-588 - Decca Records, Inc.; New York,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 6.25 x 11.75 x 13.75 inch / 159 x 298 x 349 mm

• Notes
• AC operated portable stereo amplifier with 3 speed manual record player, dual sapphire, 2 external speakers. Cabinet: Pyroxlin.

  Listed in the Billboard Phonograph Directory with 2 speakers.

• Net weight (2.2 lb = 1 kg)
• 11.5 lb (11 lb 8 oz) / 5.221 kg

• Price in first year of sale
• 40.00 $

• Literature/Schematics (1)

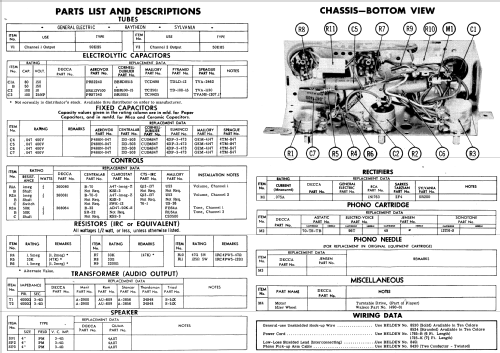

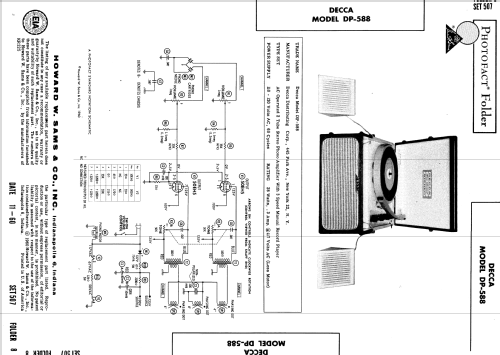

• Photofact Folder, Howard W. SAMS (Set 507 folder 8 date 11-60)

• Literature/Schematics (2)
• Billboard, Sep. 19, 1960

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
