• Country
• Great Britain (UK)

• Manufacturer / Brand
• Decca (Brand), Samuel (Barnett) & Sons, Ltd. & Decca Record Co., Ltd.; London

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79186

• • alternative name: Decca Gramophone || Decca Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK91 or 1R5 DF91 or 1T4 DAF91 or 1S5 3Q4

• Main principle
• Superheterodyne (common); ZF/IF 380 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Line / Batteries (any type) / 100-250/90 + 7.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

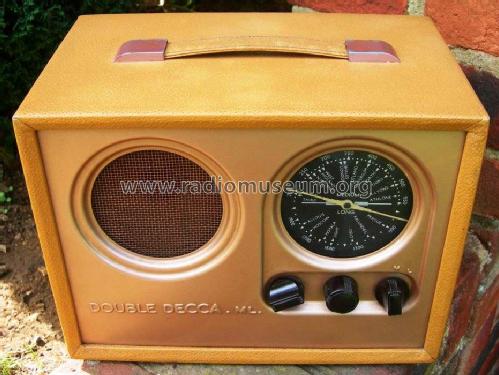

• Model: Double Decca ML MW/LW - Decca Brand, Samuel Barnett &

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12 x 9.25 x 6.75 inch / 305 x 235 x 171 mm

• Notes
• Started from serial no.5001;

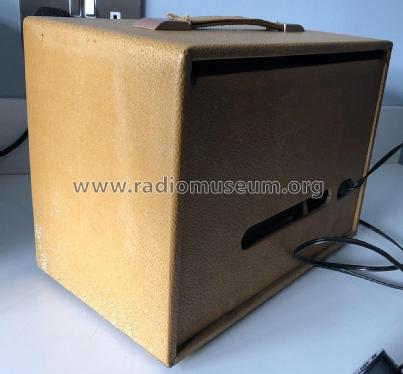

  "Air Travel" fabric covered wooden case. Also 3 bands(SW/MW/LW) version (1946) and SW/MW version (1949). Hill erroneously quotes only 3 valves and 1946.

• Price in first year of sale
• 18.00 GBP

• Source of data
• Radio! Radio!

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
