• Country
• Great Britain (UK)

• Manufacturer / Brand
• Decca (Brand), Samuel (Barnett) & Sons, Ltd. & Decca Record Co., Ltd.; London

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 112108

• • alternative name: Decca Gramophone || Decca Radio

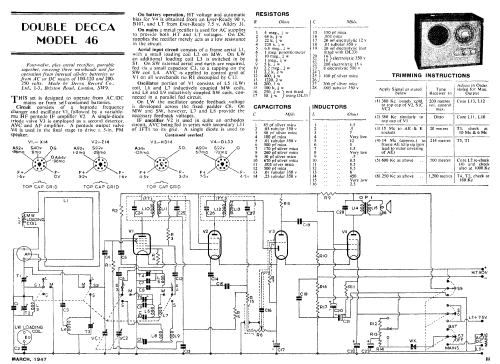

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK32 DF33 DAC32 DL33

• Main principle
• Superheterodyne (common); ZF/IF 380 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line / Batteries (any type) / AC 100-250 ; Batt. 90 & 7.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Double Decca SW/MW/LW [late] - Decca Brand, Samuel Barnett &

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12.5 x 9.5 x 7 inch / 318 x 241 x 178 mm

• Notes
• 1947 onwards release of the "Double Decca 46" model now named "Double Decca". Hill erroneously quotes only 3 valves. "Air Travel" fabric covered wooden case. Selenium rectifier. Alternative Osram valves may be fitted, X14, Z14, HD14, N15 or N16. Also see later models Double Decca ML MW/LW version (1947) and SW/MW version (1949).

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
