650B

Deco-Radio; Liege

Data
Forum
Pictures
Collections

  • Year
  • 1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 275231

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands

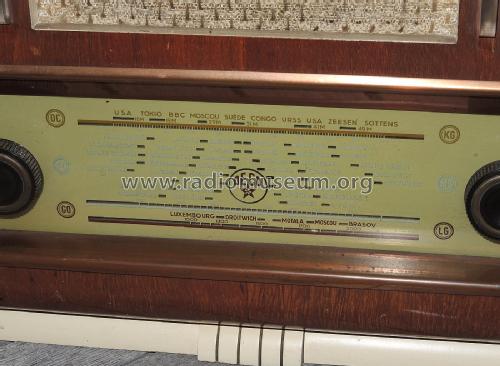

  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 145; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 650B - Deco-Radio; Liege
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 525 x 375 x 235 mm / 20.7 x 14.8 x 9.3 inch
  • Notes

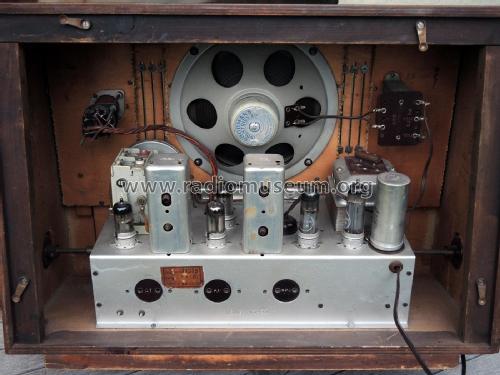

  • The Deco-Radio type 650B is a 6-tube, AC operated superheterodyne receiver.
    It has a slanted front with decorative plastic bars.

    OC/KG: 51 ... 15 m.

    IF transformers: Artex
    Loudspeaker: Goodmans Industries Ltd., Wembley, Middlesex, England

  • Net weight (2.2 lb = 1 kg)
  • 10.7 kg / 23 lb 9.1 oz (23.568 lb)
  • Author
  • Model page created by Bernhard Nagel. See "Data change" for further contributors.
