- Country
- Canada
- Manufacturer / Brand
- De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
- Year
- 1933/1934 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 331627

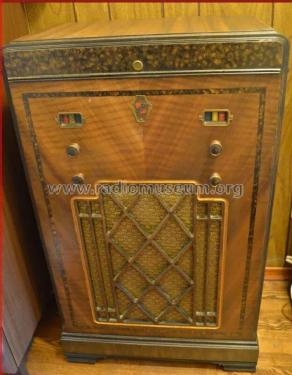

Front view of DC 506
Side-frong view of DC 506
Dial of DC 506
Back of DC 506
Chassis of DC 506

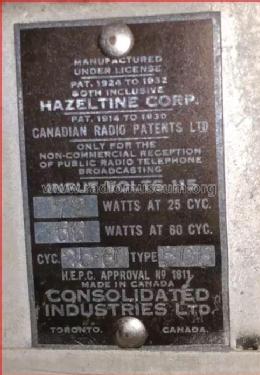

Label of DC 506
Schematic for DeForest Crosley 506
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ch= 506 - De Forest DeForest Crosley
- Shape
- Console with any shape - in general
- Notes
-
The type 506 chassis is used in both the "New Tudor" and "New Aria" model cabinets. It is not known at this time which one is shown in the pictures.
- Author
- Model page created by Terry Maurice. See "Data change" for further contributors.
- Other Models
-
Here you find 272 models, 131 with images and 183 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
