• Country
• Spain

• Manufacturer / Brand
• de Wald; Barcelona

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 212492

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 AZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 14 cm = 5.5 inch

• Material
• Wooden case

• from Radiomuseum.org

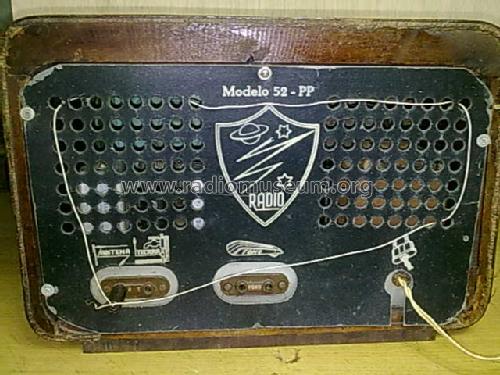

• Model: De Forest 52-PP - de Wald; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 340 x 235 x 165 mm / 13.4 x 9.3 x 6.5 inch

• Author
• Model page created by Domingo Iglesias-Carbajales. See "Data change" for further contributors.

• Other Models

• Here you find 102 models, 84 with images and 31 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
