• Country
• Canada

• Manufacturer / Brand
• De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 213932

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6J8M 6K7M 6B6 or 75 6F6M 6X6 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

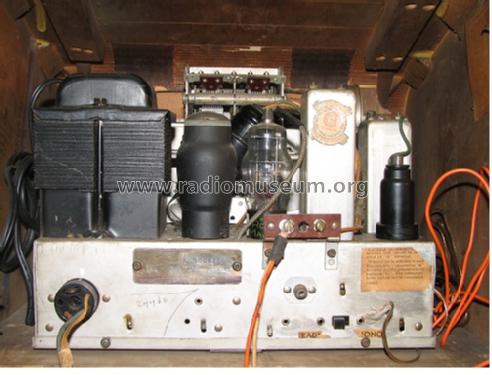

• Model: 56/42 Ch= 11DA651 - De Forest DeForest Crosley

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 16 x 17 x 11 inch / 406 x 432 x 279 mm

• Notes
• Same chassis as for Rogers-Majestic 16/65 and 16/66 and deForest 66/42.

• Net weight (2.2 lb = 1 kg)
• 30 lb (30 lb 0 oz) / 13.620 kg

• Literature/Schematics (1)
• Radio College of Canada (RCC) (see Rogers-Majestic data sheet 97)

• Author
• Model page created by Guy Gougeon. See "Data change" for further contributors.
