• Country
• Canada

• Manufacturer / Brand
• De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 168648

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12A8G 12K7M 12B6G 35L6GT 50Z7G

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

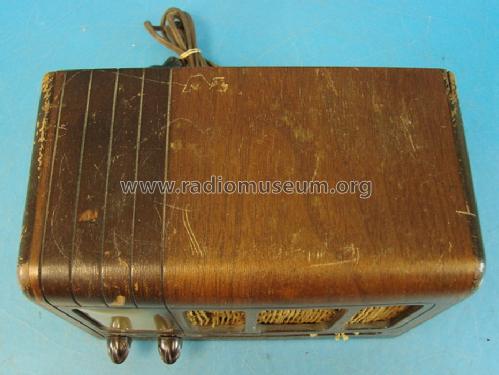

• Model: Carlton Ch= 9D514 - De Forest DeForest Crosley

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 10 x 7.5 x 6 inch / 254 x 191 x 152 mm

• Notes
• This set is electrically identical to the Rogers 14/50, 14/50P, Majestic 950, 950P, De Forest Carlton and Traymore. It is also electrically identical to the Rogers 14/50A, Majestic 950A and De Forest St. Regis which also have 4-station automatic mechanically gang tuning systems.

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Rogers-Majestic section, pages 63 & Cross-Reference

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.
