• Country
• Canada

• Manufacturer / Brand
• De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 239398

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UY235 UY224 UY235 UY224 UY247 UX280

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

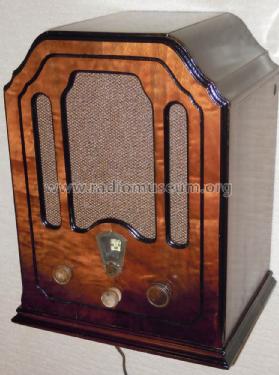

• Model: Encore Ch= 500 - De Forest DeForest Crosley

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 12.5 x 17 x 10 inch / 318 x 432 x 254 mm

• Notes

• Cabinet made by Imperial Cabinet Corp., division of the National Table Co. Ltd., Owen Sound, Ontario.

• Net weight (2.2 lb = 1 kg)
• 35 lb (35 lb 0 oz) / 15.890 kg

• Price in first year of sale
• 79.50 $

• Literature/Schematics (1)
• Radio College of Canada (RCC) (DeForest page 20)

• Author
• Model page created by Rick Williams. See "Data change" for further contributors.

• Other Models

• Here you find 272 models, 131 with images and 183 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
