LS-300

DeForest Radio Telephone & Telegraph Co. (De Forest); New York

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
DeForest Radio Telephone & Telegraph Co. (De Forest); New York

Year
1923–1926 ?

Category
Loudspeaker, headphone or earphone

Radiomuseum.org ID
205263

- alternative name: Lee De Forest Mfg.

Schematics

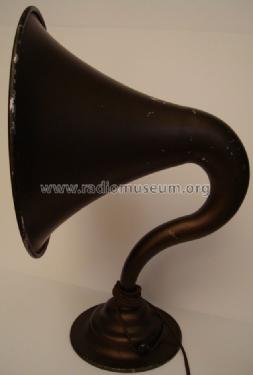

LS-300 ; DeForest Radio (ID = 1078750) Speaker-P — DeForest Radio LS-300 (1)

LS-300 ; DeForest Radio (ID = 1078748) Speaker-P — DeForest Radio LS-300 (1)

LS-300 ; DeForest Radio (ID = 1078751) Speaker-P — DeForest Radio LS-300 (1)

LS-300 ; DeForest Radio (ID = 1078752) Speaker-P — DeForest Radio LS-300 (1)

LS-300 ; DeForest Radio (ID = 1166741) Speaker-P — DeForest Radio LS-300 (2)
Ebay Item number: 150757080121

LS-300 ; DeForest Radio (ID = 1166742) Speaker-P — DeForest Radio LS-300 (2)
Ebay Item number: 150757080121

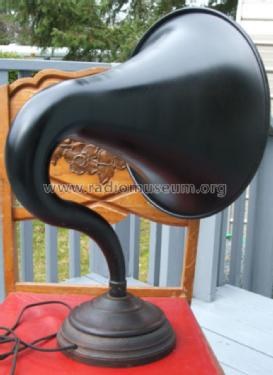

LS-300 ; DeForest Radio (ID = 1166743) Speaker-P — DeForest Radio LS-300 (2)
Ebay Item number: 150757080121

LS-300 ; DeForest Radio (ID = 1166745) Speaker-P — DeForest Radio LS-300 (2)
Ebay Item number: 150757080121

LS-300 ; DeForest Radio (ID = 1166747) Speaker-P — DeForest Radio LS-300 (2)
Ebay Item number: 150757080121

LS-300 ; DeForest Radio (ID = 1292304) Speaker-P — DeForest Radio LS-300 (2)
Radio Broadcast, Feb. 1925, p. 754

Technical Specifications

Wave bands
- without

Power type and voltage
No Power needed

Loudspeaker
Horn

from Radiomuseum.org
Model: LS-300 - DeForest Radio Telephone &

Shape
Miscellaneous shapes - described under notes.

Notes
Goose neck shape speaker with adjustable driver. Same driver as used in the D-12 thru F-5 sets. Driver made by RPM and also used in the Jewett Super Speaker.

Price in first year of sale
25.00 USD

Source of data
- - Manufacturers Literature

Literature/Schematics (1)
Radio Horn Speaker Encyclopedia by Floyd A. Paul, p. 37 & 69

Literature/Schematics (2)
Radio Broadcast, Feb. 1925, p. 754

Author
Model page created by Michael Murray. See "Data change" for further contributors.
