• Country
• Canada

• Manufacturer / Brand
• De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto

• Year
• 1930 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 339770

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 224 224 224 227 227 227 245 245 280

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

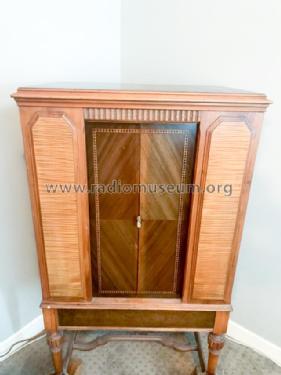

• Model: Melody Ch= 800 - De Forest DeForest Crosley

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 24 x 45 x 16 inch / 610 x 1143 x 406 mm

• Author
• Model page created by David Erali. See "Data change" for further contributors.

• Other Models

• Here you find 272 models, 131 with images and 183 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
