• Country
• Canada

• Manufacturer / Brand
• De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto

• Year
• 1934/1935 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 352484

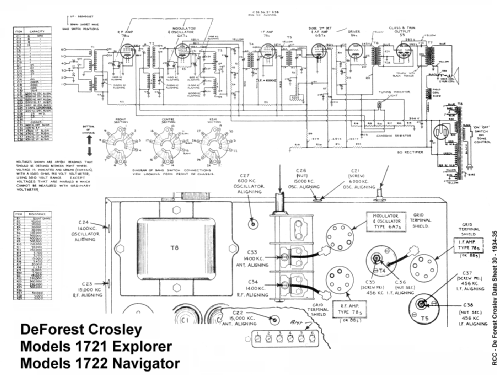

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 78 6A7 78 6B7 86 53 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Navigator 1722 - De Forest DeForest Crosley

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 24 x 42 x 14 inch / 610 x 1067 x 356 mm

• Mentioned in
• Radio College of Canada (RCC) (RCC Deforest Crosley section page 30)

• Literature/Schematics (1)
• Radio College of Canada (RCC)

• Author
• Model page created by Les Dickson. See "Data change" for further contributors.
