• Country
• United States of America (USA)

• Manufacturer / Brand
• Delmonico; Long Island City (NY)

• Year
• 1965 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 119138

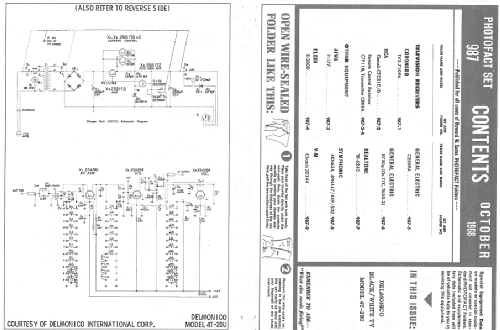

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• 25

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Dry Batteries / 8 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

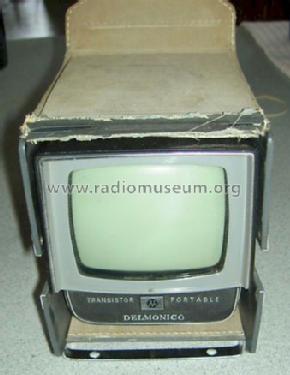

• Model: Delmonico Transistor Portable TV 4T-20U - Delmonico; Long Island City NY

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 5 x 6.25 x 10 inch / 127 x 159 x 254 mm

• Notes

• 5" b/w Transistor Portable TV Model Delmonico 4T-20U.
  US VHF Tuner
  Ext. Antenna, Earphone Jack
  ext. Power DC 12 V in
  Telescopic antenna, Carrying Handle

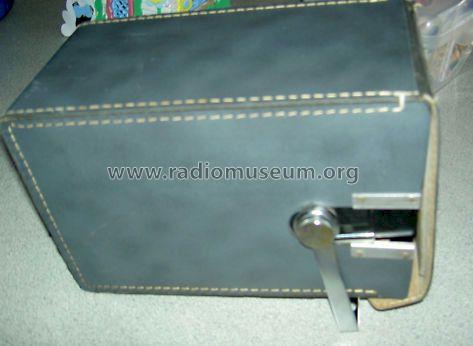

  Leather Case

  Made in Japan by JVC

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
