• Country
• United States of America (USA)

• Manufacturer / Brand
• Delmonico; Long Island City (NY)

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 153823

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2S52 2S45 2S53 2S54 2S56 2S56

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Solar- and/or muscle driven, also addl. power jack possible / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TRS-6 - Delmonico; Long Island City NY

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• The Delmonico Model TRS-6 is a Battery operated Portable Transistorized AM Receiver.

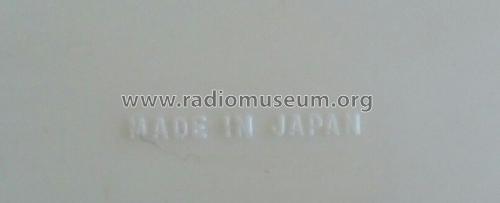

  Made in Japan

• Literature/Schematics (1)

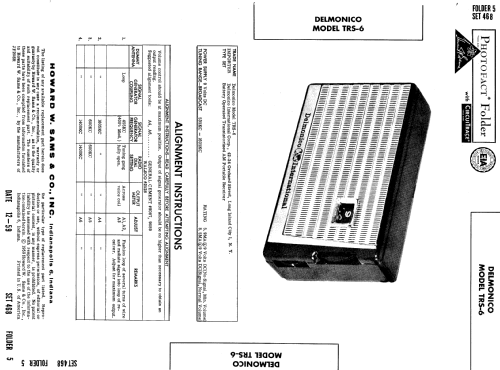

• Photofact Folder, Howard W. SAMS (Date 12-59, Set 468, Folder 5)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
