Transceptor 500 DBR 500
Delta S.A.; São Paulo
- Country
- Brazil
- Manufacturer / Brand
- Delta S.A.; São Paulo
- Year
- 1975 ?
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 347369

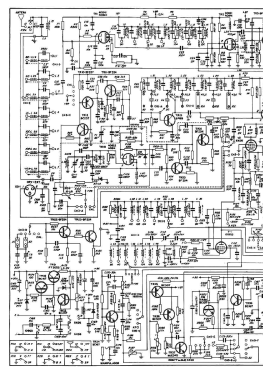

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Number of Transistors
- 38
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Transceptor 500 DBR 500 - Delta S.A.; São Paulo
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 355 x 180 x 365 mm / 14 x 7.1 x 14.4 inch
- Notes
-
In 1975 Delta launched the Delta DBR 500, a multiband SSB transceiver with 400 watts of power, using two 6KD6 tubes at the transmitter output, with receiver section already transistorized.
- Net weight (2.2 lb = 1 kg)
- 12.5 kg / 27 lb 8.5 oz (27.533 lb)
- Author
- Model page created by Alexandre Martinewski. See "Data change" for further contributors.
