• Country
• Brazil

• Manufacturer / Brand
• Delta S.A.; São Paulo

• Year
• 1950

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 273396

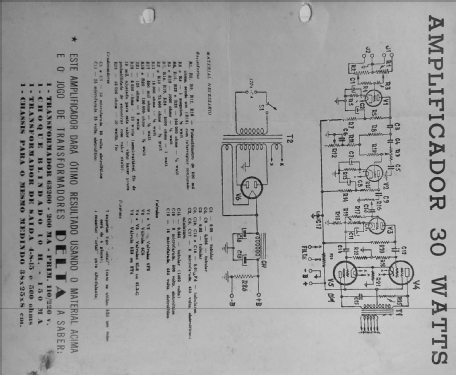

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6F5 6F5 6C5 6L6 6L6 5Z3

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

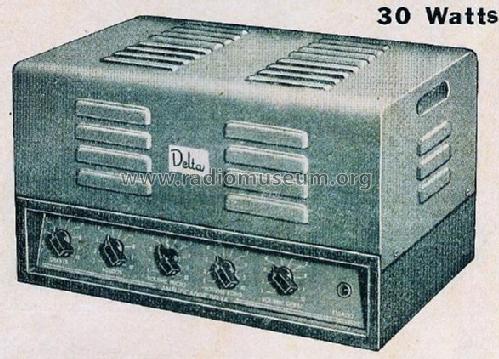

• Model: Kit de Amplificador Delta AC30 - Delta S.A.; São Paulo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 380 x 250 x 210 mm / 15 x 9.8 x 8.3 inch

• Notes
• Partial kit supplied by Delta with:

  200 mA power transformer, 10 Hy 50 mA choque, output transformer for 6L6 push pull with outputs for 4, 8, 15 and 500 Ohms, all produced by Delta.

  Metallic cabinet and chassis

  Assembly instructions

  Required tools: soldering iron and screwdriver

• Price in first year of sale
• 1,000.00 CRD

• Literature/Schematics (1)
• Delta advertising 1950

• Author
• Model page created by Antonio Rabitti. See "Data change" for further contributors.
