VFO 330
Delta S.A.; São Paulo
- Country
- Brazil
- Manufacturer / Brand
- Delta S.A.; São Paulo
- Year
- 1959
- Category
- Amateur Equipment (Other, but not Key)
- Radiomuseum.org ID
- 273230
- Number of Tubes
- 5
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: VFO 330 - Delta S.A.; São Paulo
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 330 x 240 x 210 mm / 13 x 9.4 x 8.3 inch
- Notes
-
VFO for radio amateurs
with direct output for 80, 40, 20, 15 and 10 m. bands-
Key input for CW operation
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Literature/Schematics (1)

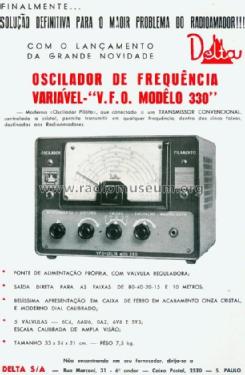

- Advertising on Revista Monitor Rádio e Televisão Jan. 1959
- Author
- Model page created by Antonio Rabitti. See "Data change" for further contributors.
