• Country
• Spain

• Manufacturer / Brand
• Demer (D.E.M.E.R.), Realson, José Riera Guillén; Barcelona

• Year
• 1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 349535

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50L6GT 35W4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

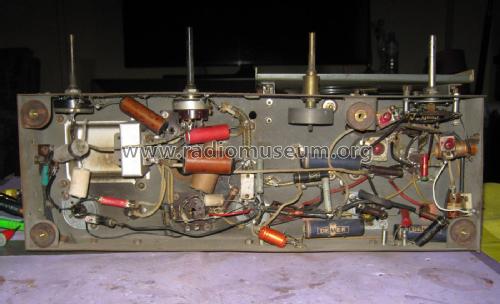

• Model: Wilson 109 - Demer D.E.M.E.R., Realson, Jos

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 495 x 280 x 210 mm / 19.5 x 11 x 8.3 inch

• Net weight (2.2 lb = 1 kg)
• 7.7 kg / 16 lb 15.4 oz (16.96 lb)

• Author
• Model page created by Mariano Crucera Ramos. See "Data change" for further contributors.

• Other Models

• Here you find 2 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
