Tuner T-4017 Integra

Denki Onkyo Co., Ltd. (Dokorder, DOK); Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1980/1981 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 346467
    • alternative name: Dokorder Inc.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 65
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • 59/60 Hz, 120 - 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Tuner T-4017 [Integra] - Denki Onkyo Co., Ltd. Dokorder
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 435 x 77 x 373 mm / 17.1 x 3 x 14.7 inch
  • Notes

  • Synthesized AM/FM Stereo Tuner

    Specifications

    • Type: Mono/Stereo Tuner
    • Tuning Bands: FM, MW
    • Tuning Scale: Digital
    • FM Tuning Range: 87.9 to 107.9 MHz
    • MW Tuning Range: 530 to 1620 kHz
    • Sensitivity: 1.8 uV (FM), 25 uV (MW)
    • Signal to Noise Ratio: 73 dB (FM), 40dB (MW)
    • Distortion: 0.1% (FM), 0.7% (MW)
    • Frequency response: 30 Hz to 15 kHz (FM)
    • Output: 1500 mV (FM), 500 mV (MW)
    • Semiconductors: 6 x FET, 59 x transistors, 16 x IC, 72 x diodes, 25 x LED

    AC Power supply depends on the country of destination.

  • Net weight (2.2 lb = 1 kg)
  • 4.8 kg / 10 lb 9.2 oz (10.573 lb)
  • Mentioned in
  • - - Manufacturers Literature (Service Manual)
  • Literature/Schematics (1)

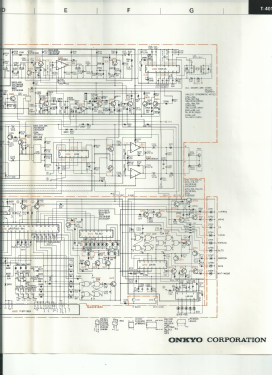

  • -- Schematic
