• Country
• Japan

• Manufacturer / Brand
• Denon (Marke / brand)

• Year
• 1996 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182965

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 150 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

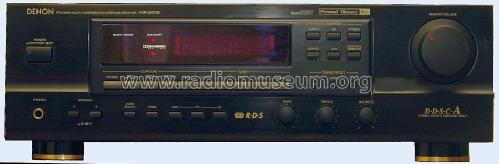

• Model: AV Surround-Receiver AVR-600RD - Denon Marke / brand

• Shape
• Rack

• Dimensions (WHD)
• 434 x 142 x 315 mm / 17.1 x 5.6 x 12.4 inch

• Notes
• Stereo-AM/FM-Tuner und Verstärker.
  Eingänge für Tonband, Fono, CD, Video; FM-Tuner mit PLL-Synthesizer, Digital-Display für Frequenz, RDS, PTY, Verkehrsfunk und Radio-Text, Suchlauf, 40 Sender-Speicher.
  Surround-Wiedergabe mit Dolby Pro-Logic, bis 7 Lautsprecher anschließbar.

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Price in first year of sale
• 550.00 DM

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
