• Country
• Japan

• Manufacturer / Brand
• Denon (Marke / brand)

• Year
• 2005 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 282621

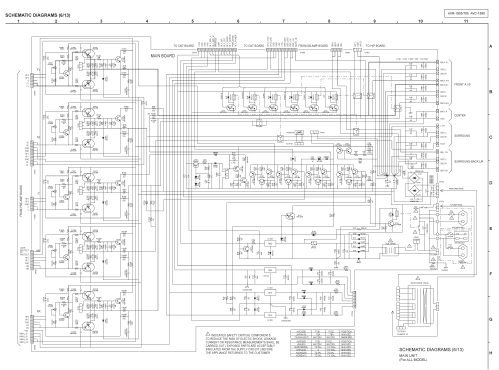

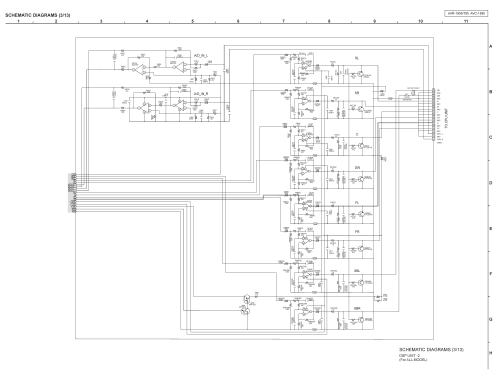

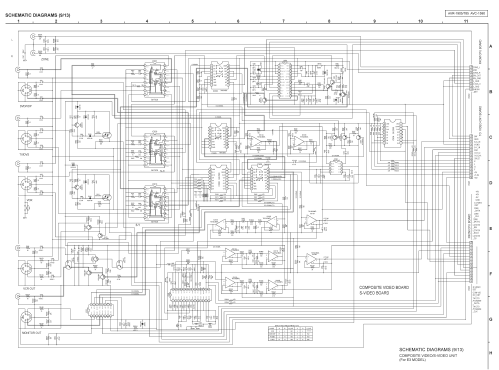

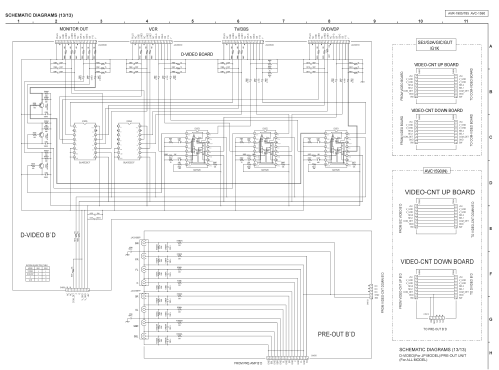

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 560 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: AV Surround Receiver AVR 1905 - Denon Marke / brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 435 x 150 x 418 mm / 17.1 x 5.9 x 16.5 inch

• Notes

• 80 watts x 7 into 8 ohms (20-20,000 Hz) at 0.08% THD - Dolby Digital EX, DTS-ES, Dolby Pro Logic IIx, and DTS Neo: 6 processing 192kHz/24-bit DACs - dual-room/dual-source output (powered and fixed line-level stereo audio output for 2nd room; using powered 2nd-room output allows 5.1 home theater in main room)  - component video conversion -  on-screen display -  multibrand remote with glow-in the-dark keys -  7.1-channel preamp output -  digital inputs: 3 optical (including one front-panel), 1 coaxial -  optical digital output -  component video switching: 3 in, 1 out (100MHz bandwidth) ·  5.1-channel analog input- ·  3 audio and 4 A/V (including 3 S-video and one front-panel) inputs ·  no phono input - high-current, low-impedance amplifier design -  56 AM/FM presets -  2 sets of main speaker outputs

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
