Precision Audio Component / AV Surround Amplifier AVC-3030

• Country
• Japan

• Manufacturer / Brand
• Denon (Marke / brand)

• Year
• 1991

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 162812

• Picture

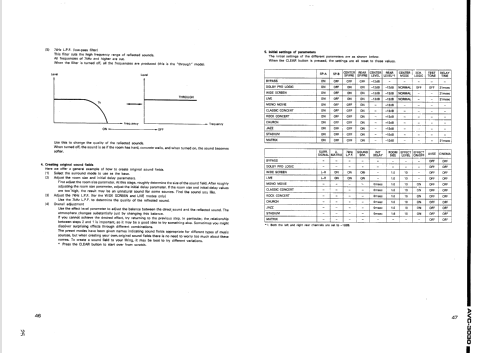

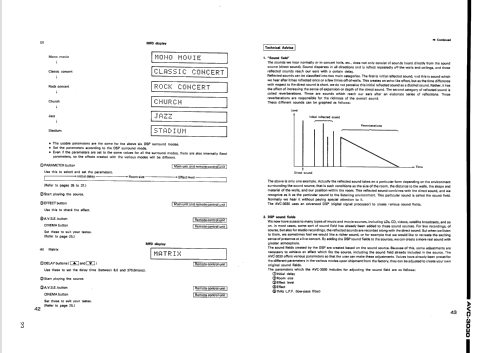

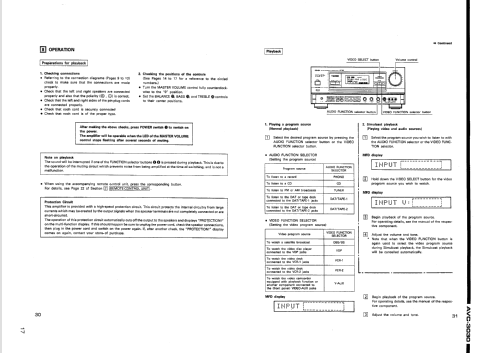

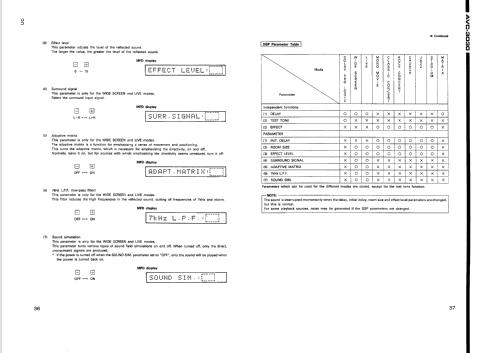

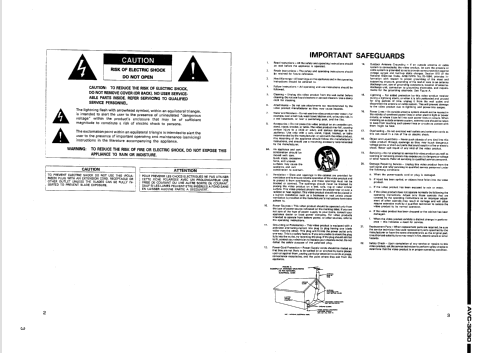

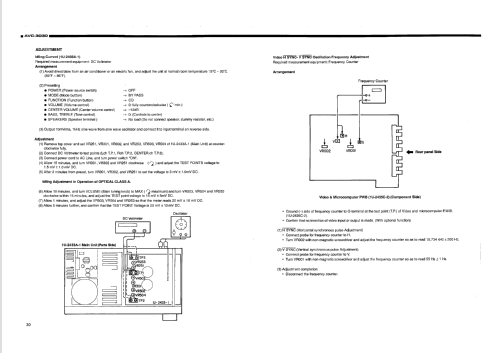

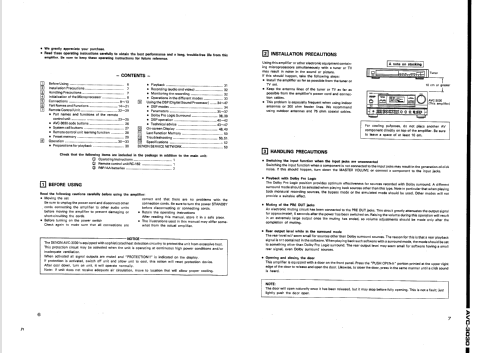

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Precision Audio Component / AV Surround Amplifier AVC-3030 - Denon Marke / brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 434 x 180 x 427 mm / 17.1 x 7.1 x 16.8 inch

• Notes
• AV Control Amplifier. Front 120W + 120W, Center 120W, Rear 60W + 60W.
  Wireless Remote Control Denon RC-153.
  Black Design.

• Net weight (2.2 lb = 1 kg)
• 15.5 kg / 34 lb 2.3 oz (34.141 lb)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
