Compact Disc Player DCD-710AE

• Country
• Japan

• Manufacturer / Brand
• Denon (Marke / brand)

• Year
• 2009

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 219478

• Picture

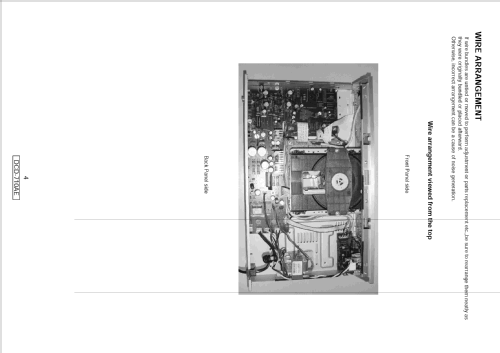

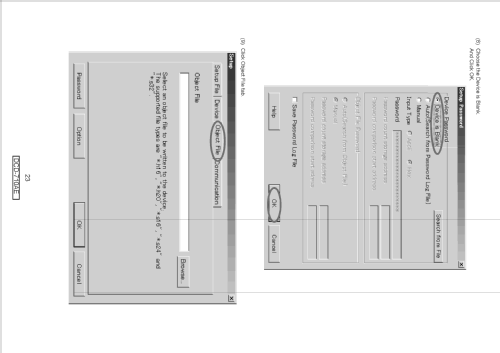

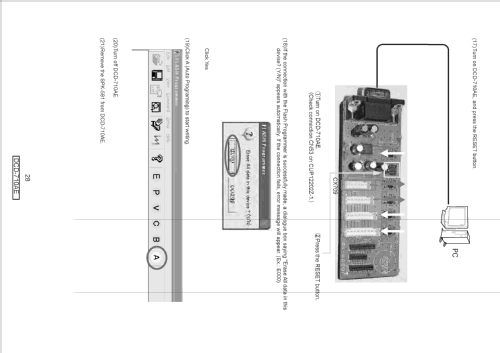

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Compact Disc Player DCD-710AE - Denon Marke / brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 434 x 107 x 279 mm / 17.1 x 4.2 x 11 inch

• Notes

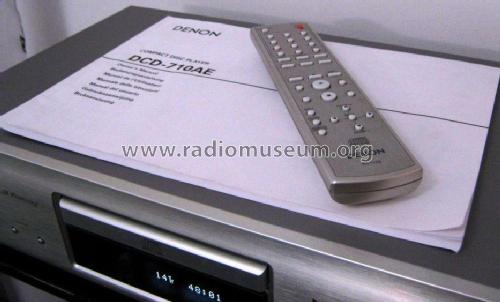

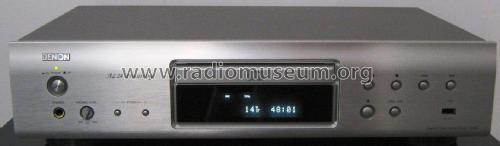

• A stereo hi-fi compact disc player in a black or silver metal case with remote control (RC-1133). With AL24 processing, a high grade analog waveform reproduction technology developed by Denon to support lower quantisation noise and higher sonic resolution and sampling. CD playback Pitch Control ±12%. Line output RCA sockets, digital optical output connector, USB port for playback from an iPod or USB device. Jack for headphones.

  Functions
  For a music CD (CD-DA) Disc:
   Random/Programmed/All track repeat/1 track repeat/A to B repeat
  For MP3/WMA files:
   Random/All-track repeat/All-track repeat between folders/1 track repeat

  Specification
  Channels:                          2 channels
  Playable frequency range:   2 Hz - 20 kHz
  S/N:                                 110 dB
  Dynamic range:                 105 dB
  Harmonic distortion:           0.0025 % (1 kHz)
  Wow & flutter:                   Below measurable limits
  Output level:                      2.0 V (10 kΩ/kohms)
  Signal type:                      16-bit linear PCM
  Sampling frequency:          44.1 kHz
  Digital output
  Optical:                            -16 to -21 dBm
  Emission wavelength:         660 nm
  Power consumption:           22 W

  Versions/Power Requirements
  230V AC 50Hz

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Price in first year of sale
• 350.00 GBP

• Literature/Schematics (1)
• - - Manufacturers Literature (Owner's Manual Compact Disc Player DCD-710AE)
