Personal Component System / Compact Disc Player DCD-F100

Denon (Marke / brand)

Data
Forum
Pictures
Collections

  • Year
  • 1999 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 276016

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 or 120 or 230 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Personal Component System / Compact Disc Player DCD-F100 - Denon Marke / brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 270 x 84 x 264 mm / 10.6 x 3.3 x 10.4 inch
  • Notes

  • A stereo hi-fi compact disc player sold as a separate or as part of the Denon D-F100 Personal Component System which includes the Denon DRA-F100 AM-FM Stereo Receiver. RCA line output sockets, optical digital output connections, unswitched AC outlet.

    Sampling Frequency 44.1kHz
    Automatic Search Mode
    Power Consumption 10 Watts
    Remote Control Unit: Denon RC-829 (USA and Asia) or RC-848 (Europe).

    Versions/Power Requirements
    USA                 /   120V AC 60Hz
    Europe & UK     /   230V AC 50Hz
    Asia                 /   115/230V 50/60Hz

  • Net weight (2.2 lb = 1 kg)
  • 2.7 kg / 5 lb 15.2 oz (5.947 lb)
  • Mentioned in

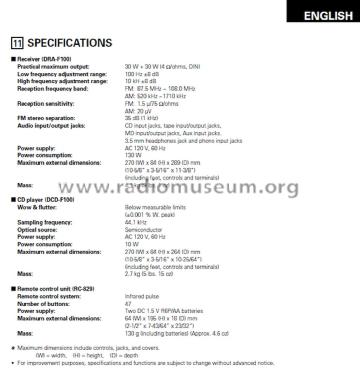

  • - - Manufacturers Literature (Instruction Manual)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual D-F100 Personal Component System 9911)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
