PCM Audio Technology / Compact Disc Player DCD-695

Denon (Marke / brand)

Data
Forum
Pictures
Collections

  • Year
  • 1993
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 161370

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: PCM Audio Technology / Compact Disc Player DCD-695 - Denon Marke / brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 434 x 105 x 280 mm / 17.1 x 4.1 x 11 inch
  • Notes

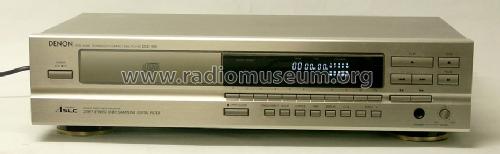

  • A stereo hi-fi compact disc player with remote control (RC-241) with an ASLC 20 Bit LAMBDA Super Linear Converter and a 20 Bit 8 times Oversampling Digital Filter with Noise Shaper. RCA line output sockets, coaxial digital output socket, sockets for Synchronized Record Function and a jack for headphones. Program playback of up to 20 selections and pitch control that enables the CD speed to be increased or decreased.

    Specification
    Frequency response:  2 Hz-20 kHz
    Signal-to-noise ratio:  107 dB
    THD:                         0.003% (1 kHz)
    Dynamic range:          98dB
    Channel separation:    103dB (1 kHz)

    Made in Germany

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Mentioned in
  • -- Original prospect or advert (Denon Hi-Fi Component '93/94 catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Denon Wartungsanleitung typ DCD-695 typ DCD-595)
  • Author
  • Model page created by Martin Bösch. See "Data change" for further contributors.
