Stereo Cassette Tape Deck DR-M1
Denon (Marke / brand)
- Country
- Japan
- Manufacturer / Brand
- Denon (Marke / brand)
- Year
- 1982–1984
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 152021
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player; Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 120 or 220 or 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

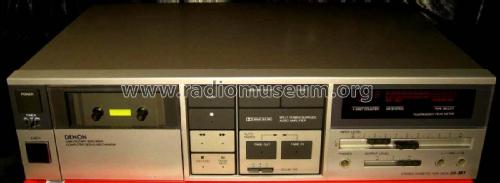

- Model: Stereo Cassette Tape Deck DR-M1 - Denon Marke / brand
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 434 x 115 x 286 mm / 17.1 x 4.5 x 11.3 inch
- Notes
-
Front loading 2-Head Stereo Cassette Tape Deck with Dolby B + C. Metal Tape Capability, 4-Digit Digital Counter, Digital Peak-Reading Meters.
Specification
Type: 4-track, 2-channel, stereo cassette deck
Heads: Record/playback: SF R/P head
Erase: Double gap ferrite head
Motors Capstan: DC motor x 1
DC motor x 2
Wow/flutter: 0.035% wrms
Fast forward time: Approx. 90 sec (C-60)
Frequency response: 20 Hz— 20 kHz (Metal tape)
Signal-to-noise ratio More than 73 dB (Dolby C ON, at 3% THD, by CCIR/ARM)
Input: Microphone: 0.35 mV (10 kΩ)
Line: 77.5 mV (50 kΩ)
Output Line: 775 mV (10kΩ load)
Headphones: 1.2 mW (8Ω load) (acceptable impedance of headphones 8-2kΩ)
Power consumption: 19W
- Net weight (2.2 lb = 1 kg)
- 5.5 kg / 12 lb 1.8 oz (12.115 lb)
- Source of data
- -- Collector info (Sammler)
- Mentioned in
- -- Original prospect or advert (Denon DR-M4/M3/M2/M1 Stereo Cassette Tape Decks brochure)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
