Precision audio component / tuner amp DRA-350

Denon (Marke / brand)

Data
Forum
Pictures
Collections

  • Year
  • 1984
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 143975

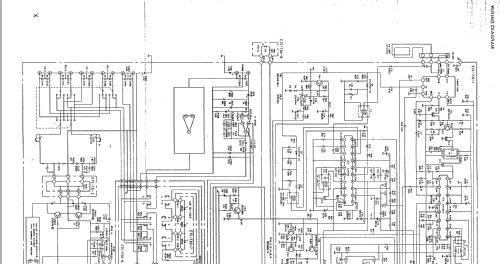

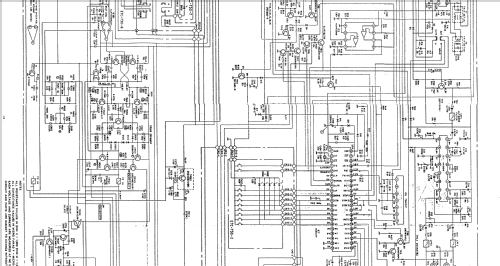

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120 or 220 or 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 72 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Precision audio component / tuner amp DRA-350 - Denon Marke / brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 434 x 112 x 400 mm / 17.1 x 4.4 x 15.7 inch
  • Notes

  • A stereo hi-fi AM / FM receiver in a black or silver metal case. Output power 2 x 36 watts into 8 ohms, tuner ranges FM 87.5-108 MHz, MW 522-1611 kHz. 5 preset station buttons for AM and FM. Removable AM loop antenna.

    Versions/Power Requirements
    USA / 120V AC 60Hz
    Europe  /  220V AC 50Hz
    UK, Australia  / 240V AC 50Hz

    AM/FM-Receiver mit 2 x 36 Watt Sinus an 8 Ohm. 5 Stationstasten für Am und FM; abnehmbare Rahmenantenne.
    Gehäuseausführung Silber oder Schwarz.

  • Net weight (2.2 lb = 1 kg)
  • 7.5 kg / 16 lb 8.3 oz (16.52 lb)
  • Source of data
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual model DRA-350 solid state tuner amplifier)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
