PCM Audio Technology / Compact Disc Player DCD-2060

Denon (Marke / brand)

Data
Forum
Pictures
Collections

  • Year
  • 1992 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 312669

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120 or 220 or 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: PCM Audio Technology / Compact Disc Player DCD-2060 - Denon Marke / brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 434 x 122 x 320 mm / 17.1 x 4.8 x 12.6 inch
  • Notes

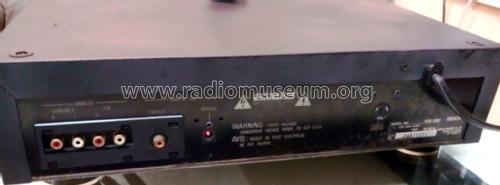

  • A stereo hi-fi compact disc player with remote control (RC-235 or RC-234) housed in a black metal cabinet. Low gravity chassis. With ASLC (Advanced Super Linear Converter) Real 20 Bit 4-DAC LAMBDA Super Linear Converter with an 8 times oversampling digital filter. RCA sockets for fixed and variable line out, terminal for optical digital output and a coaxial socket for digital output. Jack for headphones with volume level control.

    Specification
    No. of Channels:          2 channels
    Frequency Response:  2 - 20,000 Hz
    Dynamic Range:         100 dB
    Signal-to-Noise Ratio: 110 dB
    Harmonic Distortion:    0.0025% (1 kHz)
    Separation:                105 dB (1 kHz)
    Output (Analog):         Fixed 2.0 V, Variable 0 - 2.0 V
                (Digital):        Coaxial (0.5 Vp-p 75 ohm)
                                    Optical
    Functions:
    Direct selection, automatic search, programmed playback, repeat playback,
    manual search, auto space, time mode, time edit, pitch control, peak search fader

    Display:
    Track number, time, music calendar, and engaged modes

    Remote Control Unit: RC-235 (For Europe and U.K.)
                                      RC-234 (For U.S.A., Canada, Australia and Asia)

    Versions/Power Requirements
    USA  /  120V AC 60Hz
    Europe / 220V AC 50/60Hz
    UK  /  240V AC 50/60Hz
    Australia  /  240V AC 50/60Hz
    Multiple Asia  /  120/220/240V AC 50/60Hz with voltage selector

    Same as the Denon DCD-2060G Compact Disc Player which is housed in a champagne gold metal cabinet with wooden side panels.

  • Net weight (2.2 lb = 1 kg)
  • 6.7 kg / 14 lb 12.1 oz (14.758 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual Stereo CD Player models DCD-1290 DCD-2060 DCD-2060G)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
