Precision Audio Component / Stereo Integrated Amplifier PMA-2000R

Denon (Marke / brand)

Data
Forum
Pictures
Collections

  • Year
  • 1999
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 312119

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 120 or 230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 160 W (320 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Precision Audio Component / Stereo Integrated Amplifier PMA-2000R - Denon Marke / brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 434 x 180 x 478 mm / 17.1 x 7.1 x 18.8 inch
  • Notes

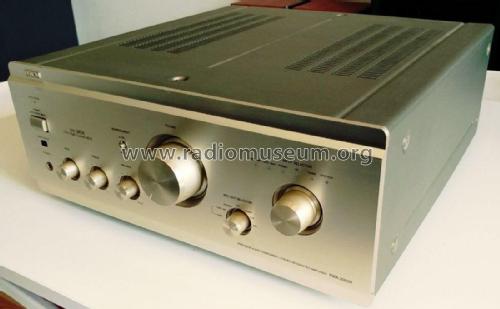

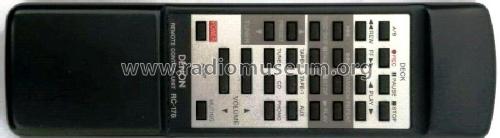

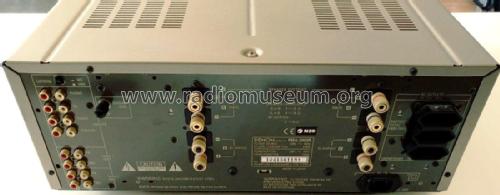

  • A stereo hi-fi integrated amplifier in a black or champagne gold metal case, with remote control (RC-176), with output power of 80 watts per channel into 8 ohms. UHC Ultra High Current Single Push-Pull Circuitry, Highly Rigid, 6-Block Separated Chassis, Leakage Cancelling Dual Power Transformers. RCA input sockets for Phono (MM or MC with switch), CD, Tuner and DVD/Aux, RCA Record/Playback sockets for 2 DAT/MD/Tape Recorders,  terminals for 2 pairs of loudspeakers or bi-wiring, a jack for headphones and 2 switched and 1 unswitched AC outlets. Rotary Bass and Treble tone controls, button for Source Direct.

    Specifications
    Power Amp Section
    Rated output,
     both channels driven            80 W + 80 W (8 ohms, 20 - 20 kHz, 0.07%THD)
                                             160 W + 160 W (4 ohms, DIN 1 kHz, 0.7%THD)
    Total Harmonic Distortion     0.01% (-3 dB rated output, 8 ohms load)
    Preamplifier Section
    Input sensitivity/Impedance
      PHONO                           2.5 mV/47 kohms (MM), 200 μV/100 ohms (MC)
      CD, TUNER, DVD/AUX
      TAPE-1/DAT, TAPE-2/MD 150 mV/47 kohms (Source Direct OFF),
                                            150 mV/13 kohms (Source Direct ON)
    RIAA deviation/PHONO       20 Hz ~ 20 kHz ±0.3 dB (MM/MC)
    General Characteristics
    S/N ratio (A-weighted)
      PHONO                          91 dB (MM), 76 dB (MC)
      CD, TUNER, DVD/AUX   110 dB (input terminals shorted/Source Direct ON)
    Tone controls                   100 Hz ±8 dB (BASS), 10 kHz ±8 dB (TREBLE)

    Versions/Power Requirements
    USA, Canada / 120V AC 60Hz
    Europe, Australia / 230V AC 50Hz



  • Net weight (2.2 lb = 1 kg)
  • 20 kg / 44 lb 0.8 oz (44.053 lb)
  • Mentioned in
  • -- Original prospect or advert (1999 Denon Product catalogue)
  • Literature/Schematics (1)
  • -- Original prospect or advert (Denon PMA-2000R Audiophile Integrated Amplifier New Model Information)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
