Precision audio component / LW-MW-FM stereo tuner TU-717

Denon (Marke / brand)

Data
Forum
Pictures
Collections

  • Year
  • 1986
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 144740

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220 or 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Precision audio component / LW-MW-FM stereo tuner TU-717 - Denon Marke / brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 434 x 68 x 300 mm / 17.1 x 2.7 x 11.8 inch
  • Notes

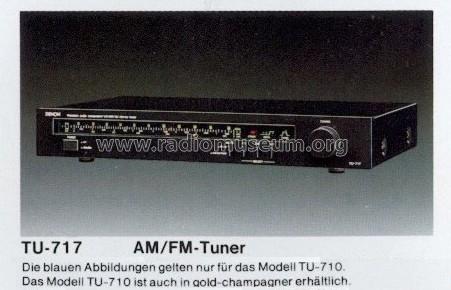

  • A stereo hi-fi MW, LW and FM tuner in a black metal case. LED signal strength indicators, FM Stereo Tuning indicator. Line Out lead with RCA plugs, connectors for supplied clip-on AM loop aerial, 75 ohm coaxial connector for FM antenna. FM Frequency response 20-15000Hz, Channel Separation 43dB (1 kHz), THD Mono 0.15%, Stereo 0.3% .

    Versions/Power Requirements
    220V AC 50Hz
    240V AC 50Hz

    AM/FM-Tuner; 20-15000 Hz; Kanaltrennung 43dB (1 kHz).
    Gehäuseausführung Schwarz.

  • Net weight (2.2 lb = 1 kg)
  • 3.3 kg / 7 lb 4.3 oz (7.269 lb)
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • - - Manufacturers Literature (Denon 1986 Catalogue (in German))
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
