• Country
• Germany

• Manufacturer / Brand
• DEPA Erwin Pahl, Berlin (Ostd.)

• Year
• 1960 ??

• Category
• Teaching aids-material

• Radiomuseum.org ID
• 73083

Click on the schematic thumbnail to request the schematic as a free document.

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

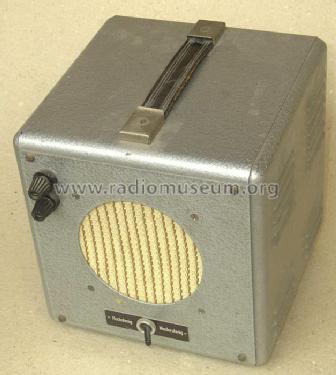

• Model: Schullautsprecher L 59/49 - DEPA Erwin Pahl, Berlin Ostd.

• Dimensions (WHD)
• 200 x 200 x 200 mm / 7.9 x 7.9 x 7.9 inch

• Notes
• Lautsprecher für den Unterrichtseinsatz, umschaltbar 7000/8 Ohm, besonders geeignet für den HF-Demonstrationssatz. Verschiedene Gehäusevarianten. Firma später VEB Physikalische Lehrmittel.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
