LCR Meter DE-5000
DER EE Electrical Instrument Co. Ltd.; Taipei
- Country
- Taiwan (Republic of China)
- Manufacturer / Brand
- DER EE Electrical Instrument Co. Ltd.; Taipei
- Year
- 2012 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 331296
With TL-21 Kelvin Alligator Clips.
Model TL-21 Kelvin Alligator Clip.

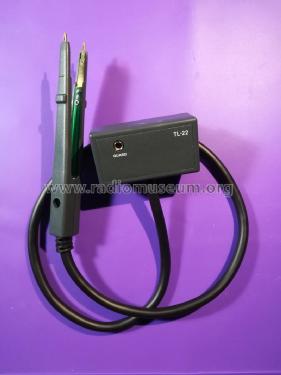

Model TL-22 Kelvin SMD Tweezer.
- Wave bands
- - without
- Power type and voltage
- Batteries / addl. power jack / 1 x 9 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: LCR Meter DE-5000 - DER EE Electrical Instrument
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 52.5 x 188 x 95 mm / 2.1 x 7.4 x 3.7 inch
- Notes
-

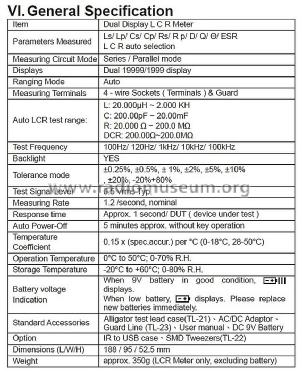

Model DE-5000 LCR meter. Measures inductance, capacitance, dissipation factor, quality factor, and ESR. With selectable test frequencies of 100Hz, 120Hz, 1kHz, 10kHz, and 100kHz. Optional TL-21 kelvin alligator clip, TL-22 kelvin SMD tweezer, TL-23 guard line, and USB-IR computer link.
- Net weight (2.2 lb = 1 kg)
- 0.350 kg / 0 lb 12.3 oz (0.771 lb)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
