• Country
• Switzerland

• Manufacturer / Brand
• Deso, Dewald & Sohn, Dewald AG; Zürich

• Year
• 1949–1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 11941

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EF41 EBL21 EM34 AZ31

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

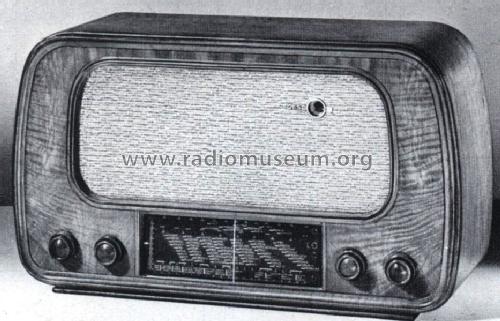

• Model: 504 - Deso, Dewald & Sohn, Dewald AG

• Dimensions (WHD)
• 605 x 375 x 216 mm / 23.8 x 14.8 x 8.5 inch

• Notes
• KW-"Pilot"

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Price in first year of sale
• 620.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.
